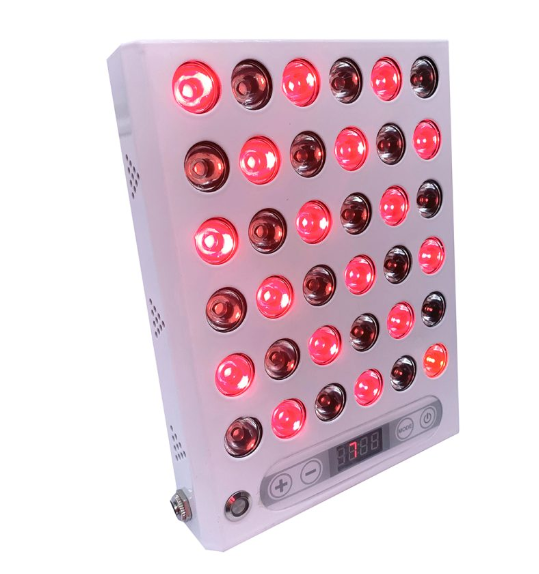

About your LED Light Therapy Panel
Photo bio‐modulation, also known as low‐level light therapy (LLLT), is a medical technique in which exposures to low‐level laser light or light‐emitting diodes (LEDs) stimulate cellular function leading to beneficial clinical effects. LED is a semiconductor device available at wavelengths ranging from ultraviolet (UV) to visible to near‐infrared (NIR) bandwidth that converts electrical current into a non‐coherent narrow bandwidth of the electromagnetic spectrum.

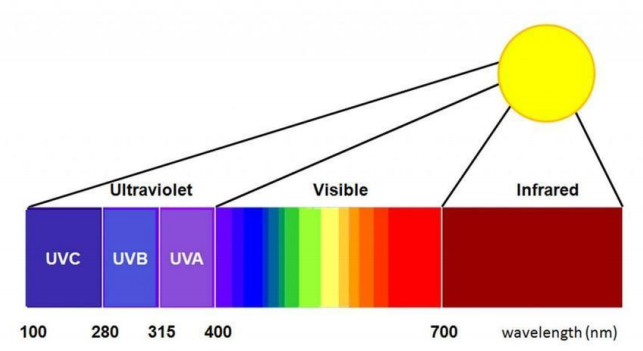

It's not just light that we can see that comes from the sun. The light can be split up into a spectrum of many different wavelength and colors. We main focus on the visible red light and invisible near infrared light, which have the identified benefits to human body.
Study shows red 620nm ‐ 670nm can penetrates deep into the skin of 4‐5mm, while near infrared light 740nm ‐ 880nm can much more deeper reach to subcutaneous layer and increase blood flow.
Red light can help the body decrease skin inflammation, smooth skin tone, repair sun damage, fade scars and stretch marks, and can even build collagen in the skin, which can reduce winkles and help heal wounds.
1. Technical parameters
Model | T180 | Input Voltage | AC85‐265V |
Material | Aluminum | Power Factor | >0.95 |
LED | 660nm + 850nm | Beam Angle | 90° |
Power | 50W | Dimmable | Red and NIR |
LED Qty | 36 pcs | Dimension | 215x169x40mm |
Cooling Fans | 1 Fan | Warranty | 2 Years |
Life Span | 50000 hours | Qty/CTN | 4 PCS |
Gross Weight | 1.6 Kg | Carton | 260x220x110mm |
2. Operation Instruction
1, Clear the area being treated by removing all traces of make‐up, dirt or sweat. In general, simply wash the area being treated to ensure a clean surface.
2, For safety, please make sure the switch on OFF states before you stick the power cable to the wall outlet.
3, For best result, place the front of the device next to bare skin, less than 6 to 12 inches away from the area being treated.
4, When do face therapy, please do not look directly to your eyes, there is a goggle included in the packing, wear it if you feel the light is too bright.
5, Hang it and enjoy the light therapy process Hang it on the door or wall Adjust the stand angle to the suitable position.
6, Select timer function When you stick the power cable to the wall outlet, the light hasn’t on working states.
3. Memory Function
You can set your own memory model, when you turn on your light therapy panel it will start count down with the time you set. How to set it:
Turn on the panel, and the timer will shows on OFF states, click the up time add function button, select the time which you use the most, like 20mins, then turn on the RED and NIR button, the panel will count down from 20mins, and when times up, it will shut down automatically. Next time you only need to switch the RED and NIR button, the timer will count from 20mins, but also you can add or reduce time by click up and down button.
I. Precautions, warnings and suggestive instructions Matters needing attention
Read the manual before use.
It is recommended to use it under the guidance of a doctor.
Patients with light and heat allergy should use it under the guidance of a doctor.
For the diseases not included in the scope of application, patients should try it under the guidance of doctors.
If you feel uncomfortable after using the instrument, please see a doctor immediately.
Infrared treatment of skin grafting, scar area should be used with caution. In 24 to 48 hours after acute trauma, infrared ray is generally not used to treat the injured part, so as to avoid swelling, pain and aggravation of exudation.
If the instrument is not stored for a long time, attention should be paid to avoid dust accumulation.
Measures to reduce the risks of burn, fire, electric shock or machine and human body injury:
Please select high quality power socket, and the power supply voltage should be consistent with the nominal voltage of the instrument.
Please use socket with ground wire hole to ensure correct and good grounding.
When storing the instrument, do not plug the power plug into the power socket.
When connecting or disconnecting the power supply, be sure to hold the plug and keep your hands dry. Do not pull the wires to prevent accidental electric shock.
It is strictly forbidden to insert fingers or other foreign matters into the protective cover of the radiation device when the instrument is working, so as to prevent electric shock.
After using the instrument, make sure that the power switch is in the "off" state, when it is not used continuously, please unplug the power cord.
Please do not use in bathrooms and damp places.
The instrument is allowed to work continuously. It is forbidden to add additional cover or other covering when using.
In case of power failure, please turn off the power switch and unplug the power cord.
The product cannot be used in the case of flammable gas.
Attention should be paid to eye protection during infrared treatment.
For the elderly, children, the disabled and the patients with reduced or disappeared local warm feeling, someone should take care of them and operate strictly to avoid scalding.
In case of the following situations, please stop using immediately, unplug the power cord and send it to the maintenance department for inspection and repair. (1) The power cord is cut and damaged. (2) Abnormal heating of power cord or plug. (3) Smoking and burning smell occurred in use. (4) Water or other liquid flows into the instrument.
